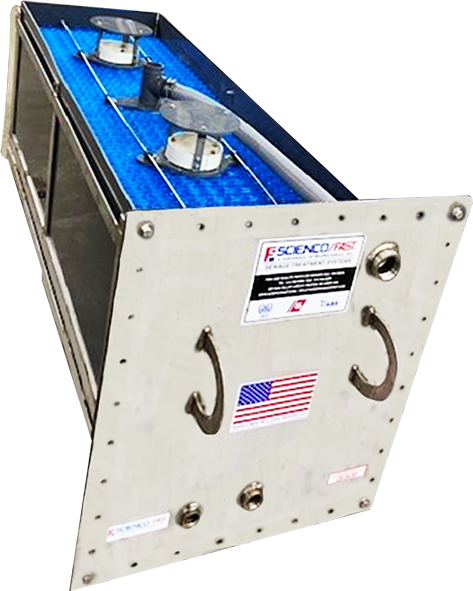

MarineFAST® M Series Systems – Compact. Reliable. Built for Tight Spaces.

The MarineFAST® M Series is a line of Type II Marine Sanitation Devices (MSDs) engineered to treat blackwater and graywater onboard commercial vessels with crews of up to 60 people. Designed for flexible installation in areas with low headroom or narrow access, M Series units can be disassembled to fit through watertight doors and reassembled across multiple compartments or decks. The system is fully certified to meet USCG and IMO MEPC.159(55) standards and delivers dependable treatment without sacrificing valuable space.

Why Choose the M Series?

Modular and Flexible

Units can be disassembled to pass through standard watertight doors and reinstalled across separate compartments or decks.

Preassembled and Factory Tested
Ships fully assembled, wired, and tested to save installation time and reduce setup complexity.
Space-Conscious Design
Compact footprint is ideal for tight machinery spaces, shaft alleys, and below-deck installations.
Certified and Compliant
Meets or exceeds USCG 33 CFR 159 and IMO MEPC.159(55) sanitation standards.
Low Maintenance Operation
No moving parts in contact with sewage. No need for manual cleaning, special tools, or advanced operator training.
Built-In Sludge Storage
Includes integrated sludge storage capacity for extended use and operational efficiency.

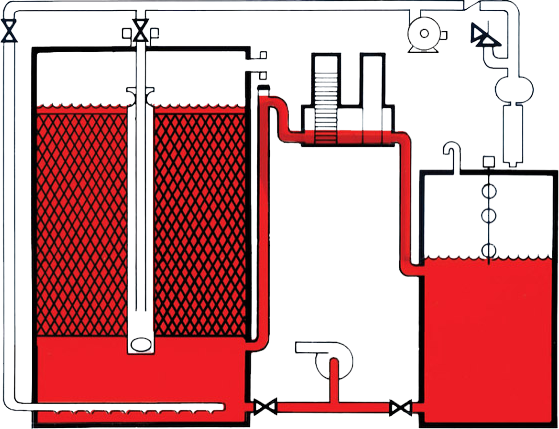

How It Works

The M Series uses a proven, efficient biological treatment process to break down and disinfect onboard sewage, all within a compact and contained system.

  • Sewage Inflow: Wastewater flows directly into the system without the need for a macerator or bar screen.
  • Aeration and Treatment: A compact blower sends air through internal piping to an airlift system. This recirculates and oxygenates the tank to support microbial breakdown on fixed media.
  • Disinfection: Treated effluent overflows into a chlorination system (tablet or liquid) and passes through a retention tank. Float switches automate level and pump control.
  • Effluent Transfer: Disinfected water is pumped from the wet well to open water. Custom discharge options are available as needed.

Key Features

Modular System
Design
Components can be separated and installed in tight or split-space layouts.

Compact Capacity Options
Treats between 200 and 1,500 gallons per day depending on model selected.

Chlorination
Options
Includes tablet chlorinator or optional liquid feed system with appropriate contact time.

Space-Friendly
Layout
Fits through narrow access points and installs in spaces with limited headroom.

Factory-Assembled and Wired
Arrives tested and prewired to streamline the installation process.

Low Maintenance Needs
No direct contact with sewage and no need for frequent cleaning or special tools.

Certified and
Compliant
Meets or exceeds USCG 33 CFR 159 and IMO MEPC.159(55) for marine sanitation systems.

Models & Capacities

Choose the right size for your needs:

Model Number – all except MEPC M-1 M-2 M-3 M-4 M-5
Model Number – MEPC units only M-1M M-2M M-3M M-4M M-5M
Rated capacity people
blackwater only 13 20 30 40 61
above plus showers & hand sinks 10 15 23 30 46
above plus dishwashing & laundry 5 8 12 16 25
above plus ground food waste 4 6 8 11 17
Rated capacity gpd [m³/d] 340[1.3] 510[1.9] 720[2.7] 1100[4.2] 1700[6.4]
Recommended max gpd [m³/d] 270[1.0] 400[1.5] 610[2.3] 810[3.1] 1200[4.5]
Number of Media Treatment Tanks 1 1 1 2 2

Applications

The MX Series is built for low-clearance areas where headroom is limited but
reliable wastewater treatment is essential.

Shaft alleys and
machinery rooms

Vessels with limited
vertical space

New builds requiring compact
system integration

Crew boats and
utility vessels
