SciBRINE® Brinemaker System

Complete, Onsite Bulk Salt-Dissolving Solution

The Scienco® SciBRINE® Brinemaker is a complete, automated system designed to produce a clear, saturated brine on demand—eliminating the need for manual mixing or bag handling. Built to meet USDA and FSIS food processing standards, the SciBRINE® system ensures consistent brine quality with minimal maintenance. The fiberglass tank furnished with the system is built to ASTM 3299 standards.

Available as a complete unit or in KIT form for integration with locally fabricated tanks, SciBRINE® systems support a wide range of salt types including rock, solar, and food-grade granulated salt. For optimal performance, a corrosion-resistant fiberglass tank is recommended, but other tank types can be used based on local availability.

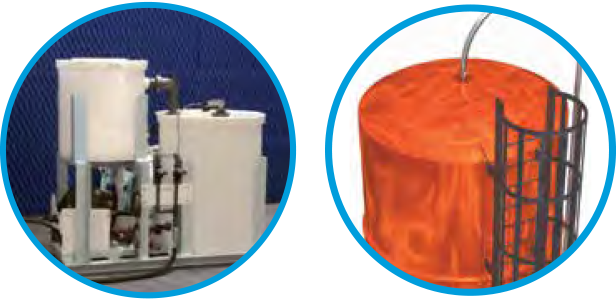

Why Choose The SciBRINE® System?

A trusted name in brine solutions since the 1960s, SciBRINE® offers long-lasting durability, operational efficiency, and customizable features for both large- and small-volume users.

Proven Performance

Decades of reliable service in municipal, industrial, and
commercial applications.

Optional Outdoor Package

Add heat and insulation for year-round performance in harsh
outdoor conditions.

Built-In Safety Features

Optional OSHA-approved ladder and top-dome handrail provide
added protection for operators.

Visual Level Indicators

Sight strips offer easy verification of salt and liquid levels
at a glance.

Customizable Design

Various sizes available, with custom builds often accommodated to
meet unique site requirements.

How It Works

The SciBRINE® system uses a down-flow brine-making process that ensures continuous and consistent saturation:

  • Salt is loaded into the brinemaker tank, where it settles on the bottom.
  • Water enters within and flows through the salt bed, dissolving it as it flows downward—producing a clear, saturated brine without operator input.
  • The system is controlled by the Levetrol® Plus controller, which automates the water flow and gives an indication when the system is ready to accept another load of salt.
  • The brine is then ready to be pumped out for use in downstream applications.
  • A duplex pumping system is available should the brine need to be transferred to a storage tank elsewhere. Custom controls can be are available for this feature.

This method reduces operator labor, minimizes bag waste, and ensures uniform brine concentration for critical operations.

Models & Capacities

Choose the right size for your needs:

Standard Models (FG denotes Fiberglass tank configuration) Total Salt Storage (tons) Max. Brine Flow (GPM) Overall Tank Height (ft.) Operating Weight (tons)
SciBRINE® FG0706 0.3 19.2 8.5 8
SciBRINE® FG0709 2.0 19.2 11.5 14
SciBRINE® FG0712 4.7 19.2 15.5 18
SciBRINE® FG0809 0.9 25.1 11.5 18
SciBRINE® FG0812 6.2 25.1 14.5 24
SciBRINE® FG0815 9.7 25.1 17.5 30
SciBRINE® FG0915 12.2 31.8 17.5 38
SciBRINE® FG1015 16.5 39.3 22 50
SciBRINE® FG1212 11.9 56.5 18 58
SciBRINE® FG1215 23.8 56.5 22 70
SciBRINE® FG1220 43.5 56.5 24 90

Applications

SciBRINE® Brinemakers are ideal for:

Food Processing

USDA/FSIS compliant brine for preservation, flavoring, or curing.

Textile & Dye-Setting Industries

Stable brine for consistent chemical processing.

Water Softening Plants

Bulk brine generation for industrial systems.

Chemical Manufacturing

Reliable brine feedstock for various chemical reactions.

Municipalities

for large water softening systems
