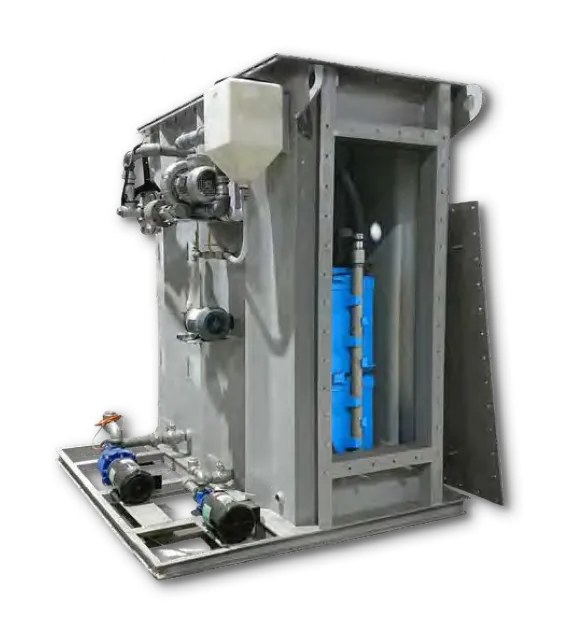

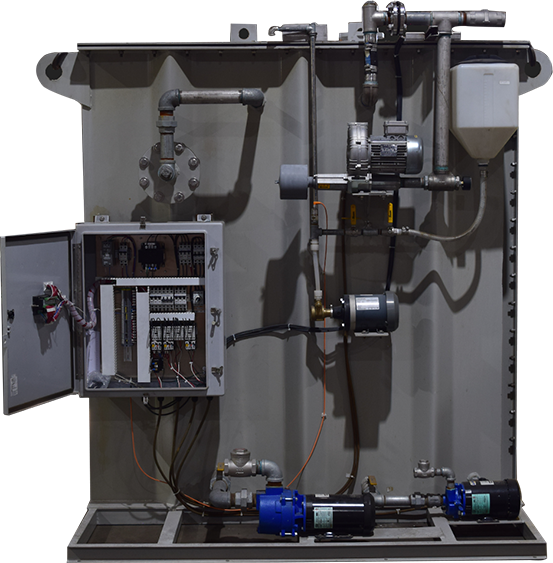

BioBarrier® Marine MBR Membrane Bioreactor

Advanced Membrane Bioreactor Wastewater Treatment for Vessels and Offshore Platforms

The BioBarrier Marine MBR is a high-performance membrane bioreactor (MBR) system designed to deliver ultra-clean, disinfected effluent from marine wastewater. Combining biological treatment with advanced membrane filtration, it provides one of the highest levels of wastewater purification available for ships, yachts, and offshore facilities.

Why Choose the Marine BioBarrier System?

Exceeds IMO Standards

Engineered to surpass IMO MEPC.227(64) requirements, including nutrient removal for sensitive discharge zones and environmentally focused operations.

Supports Full Onboard Treatment

Ideal for total blackwater and graywater applications, as well as water reuse processes onboard.

High Treatment Efficiency

Removes 99.9% of pollutants and contaminants typically found in vessel sewage streams.

How It Works

  • Wastewater enters the biological treatment zone, where naturally occurring microbes break down organic matter
  • It then flows through a submerged ultrafiltration membrane, which physically separates solids, bacteria, and viruses
  • The result is crystal clear, disinfected effluent- ready for overboard discharge or reuse
  • Fully automated controls and minimal operator involvement ensure safe, consistent performance

Key Features

Meets and exceeds IMO MPEC.227(64),
USCG, and international discharge regulations

Superior effluent quality
with physical separation of pathogens and solids

Low maintenance
and energy efficient operation

Environmentally safe
perfect for protected and restricted marine environments

Models & Capacities

Choose the right size for your needs:

BioBarrier® MarineMBR® Rated Capacities – ENGLISH UNITS (US gal, lb)
MMBR Model 1.0 2.0 3.0 4.0 5.0 6.0 7.0
Number of tanks 1 1 1 1 2 3 4
Hydraulic limit gpd* 700 1400 2800 4200 8400 12600 16800
Organic limit BOD5 lb/day 2.2 4.3 11.5 17.2 34.4 51.5 68.7
RATED CAPACITIES LIVE-ON PERSONS
Vacuum blackwater only @ 3 gpcd 43 87 229 344 687 1031 1375
Conventional blackwater only @ 11 gpcd 43 87 229 344 687 1031 1375
Vacuum blackwater + person washroom @ 16 gpcd 33 66 174 260 521 781 1041
Vacuum toilets + all greywater @ 36 gpcd 17 35 78 117 233 350 467
All domestic sewage with vacuum toilets @ 44 gpcd 12 24 64 95 191 286 382
BioBarrier® MarineMBR® Rated Capacities – METRIC UNITS (m³, kg, liters)
MMBR Model 1.0 2.0 3.0 4.0 5.0 6.0 7.0
Number of tanks 1 1 1 1 2 3 4
Hydraulic limit m³/day* 2.7 5.3 10.6 15.9 31.8 47.7 63.6
Organic limit BOD5 kg/day 1.0 2.0 5.2 7.8 15.6 23.4 31.2
RATED CAPACITIES LIVE-ON PERSONS
Vacuum blackwater only @ 11 lpcd 43 87 229 344 687 1031 1375
Conventional blackwater only @ 42 lpcd 43 87 229 344 687 1031 1375
Vacuum blackwater + person washroom @ 61 lpcd 33 66 174 260 521 781 1041
Vacuum toilets + all greywater @ 136 lpcd 17 35 78 117 233 350 467
All domestic sewage with vacuum toilets @ 167 lpcd 12 24 64 95 191 286 382

Applications

The MarineFAST® BioSolids Management System is ideal for:

Cruise ships and passenger vessels

Ferries

Workboats, Cargo ships, freighters

Offshore oil
& gas

Wind
platforms
