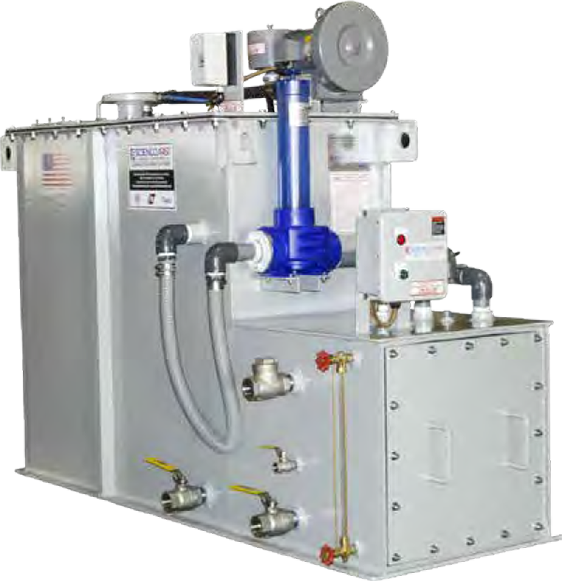

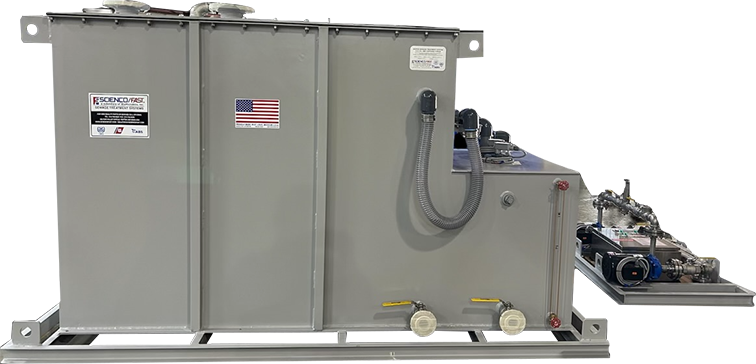

MarineFAST® MX Series Systems – Compact. Reliable. Built for Tight Spaces.

The MarineFAST® MX Series is a line of Type II Marine Sanitation Devices (MSDs) engineered to treat blackwater and graywater on commercial vessels with up to 65 crew members. With a compact, all-in-one design, these systems are ideal for installations in areas with limited headroom or access, such as shaft alleys and machinery rooms. Fully USCG certified and compliant with IMO MEPC.159(55), the MX Series offers a space-efficient, plug and play solution for reliable marine wastewater treatment.

Why Choose the MX Series?

Modular and Flexible

Designed for easy integration, these one-piece systems combine the media tank and wet well on a single platform.

Preassembled and Factory Tested
Ships fully assembled, wired, and tested to simplify installation and reduce time on site.
Built for Tight Spaces
Perfectly suited for low-clearance areas like shaft alleys, machinery rooms, and below-deck compartments.
Certified and Compliant

Meets or exceeds USCG 33 CFR 159 and IMO MEPC.159(55) standards for marine sanitation.

Integrated Sludge Storage
Includes built-in sludge storage to help manage waste on longer voyages.

How It Works

The MX Series treats onboard sewage using a self-contained process that supports safe and compliant discharge at sea.

  • Sewage Inflow: Wastewater flows directly into the system. No macerator or screens are required.

  • Aeration and Treatment: A compact blower sends air through internal piping to an airlift system. This circulates and oxygenates the tank. Microorganisms grow on fixed media and break down organic waste.

  • Disinfection: Treated effluent flows through a disinfectant system, using either tablets or liquid, and then into a contact tank for retention. Float switches manage water level and pump operation.

  • Effluent Transfer: A discharge pump moves the disinfected water to open sea. Alternative discharge options can be configured.

Key Features

Compact One-Piece Design
Media tank and wet well are combined on a single platform to save space and simplify installation.

High Daily Treatment Capacity
Models available to treat between 200 and 1,500 gallons per day, depending on system size.

Integrated Chlorination Options
Supports tablet or liquid disinfection methods, with appropriate retention time built in.

Factory Assembled and Tested
Ships fully wired, piped, and tested to ensure quick installation and dependable performance.

Low Maintenance
Operation
No moving parts in contact with sewage and no manual cleaning required.

Space-Saving
Footprint
Designed to fit tight spaces, including shaft alleys and low-clearance mechanical rooms.

Certified and
Compliant
Meets USCG 33 CFR 159 and IMO MEPC.159(55) requirements for marine sanitation systems.

Models & Capacities

Choose the right size for your needs:

Model Number – all except MEPC MX-1 MX-2 MX-3 MX-4 MX-5
Model Number – MEPC units only MX-1M MX-2M MX-3M MX-4M MX-5M
Rated capacity people
blackwater only 13 20 29 43 65
above plus showers & hand sinks 10 15 22 33 49
above plus dishwashing & laundry 5 8 12 17 26
above plus ground food waste 4 6 8 12 18
Rated capacity gpd [m³/d] 340[1.3] 510[1.9] 720[2.7] 1100[4.2] 1700[6.4]
Recommended max gpd [m³/d] 270[1.0] 400[1.5] 570[2.2] 870[3.3] 1300[4.9]
Number of Media Treatment Tanks 1 1 1 2 2

Applications

Designed for vessels with tight access and complex layouts, the M Series is ideal when components
need to be separated and installed in challenging spaces.

Vessels with watertight
door restrictions

Retrofits requiring modular
installation across decks

Workboats
and dredges

Barges and
offshore platforms
